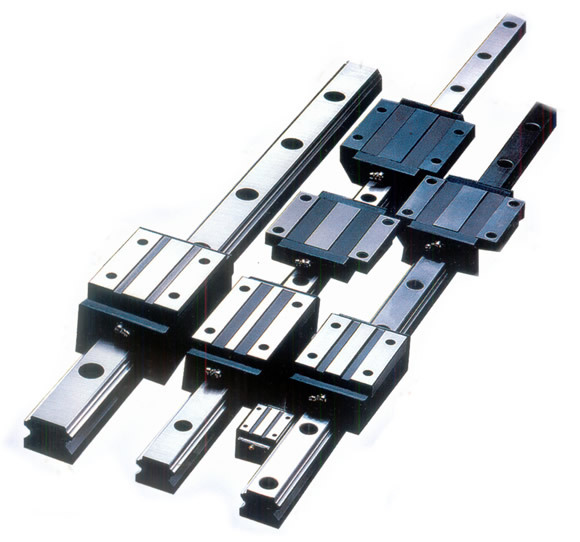

在精密機械領域，導軌作為核心運動部件，其耐磨性能直接影響設備精度與使用壽命。抗磨損涂層作為提升導軌性能的關鍵技術，已形成多元化技術體系，可根據工況特性實現定制化防護方案。

　　In the field of precision machinery, the wear resistance of the guide rail, as the core moving component, directly affects the accuracy and service life of the equipment. As a key technology for improving the performance of guide rails, wear-resistant coatings have formed a diversified technical system, which can achieve customized protection solutions according to the characteristics of working conditions.

　　金屬基陶瓷涂層是硬質防護的代表。通過超音速火焰噴涂技術，將碳化鎢、氧化鉻等陶瓷相與金屬基體復合，形成硬度達HV1200-1600的耐磨層。某數控機床導軌經該涂層處理后，摩擦系數降低60%，使用壽命延長5倍。該類涂層適用于重載、高速工況，但需注意殘余應力控制，避免涂層剝落。

　　Metal based ceramic coatings are representative of hard protection. By using supersonic flame spraying technology, ceramic phases such as tungsten carbide and chromium oxide are combined with metal substrates to form a wear-resistant layer with a hardness of HV1200-1600. After the coating treatment, the friction coefficient of a certain CNC machine tool guide rail decreased by 60% and the service life was extended by 5 times. This type of coating is suitable for heavy-duty and high-speed working conditions, but attention should be paid to residual stress control to avoid coating peeling.

　　高分子復合涂層展現柔韌防護特性。以聚四氟乙烯為基材，添加二硫化鉬、石墨等固體潤滑劑，通過等離子噴涂工藝形成0.05-0.15毫米的減摩層。某印刷機導軌應用后，啟停階段的粘著磨損減少85%，噪音值降低12分貝。該涂層對輕載、往復運動場景具有顯著優勢，但需定期檢測涂層厚度，避免過度磨損導致的防護失效。

　　Polymer composite coatings exhibit flexible and protective properties. Using polytetrafluoroethylene as the substrate, solid lubricants such as molybdenum disulfide and graphite are added to form a friction reducing layer of 0.05-0.15 millimeters through plasma spraying technology. After the application of a certain printing machine guide rail, the adhesive wear during the start stop stage decreased by 85%, and the noise level decreased by 12 decibels. This coating has significant advantages for light load and reciprocating motion scenarios, but it is necessary to regularly check the coating thickness to avoid protection failure caused by excessive wear.

　　納米結構涂層開啟微觀防護新時代。利用磁控濺射技術制備的類金剛石涂層，晶粒尺寸控制在10-50納米，兼具高硬度與低摩擦特性。實驗數據顯示，該涂層在干燥環境下的摩擦系數可低0.05，耐磨性是傳統鍍鉻層的3倍。某半導體設備導軌采用該技術后，顆粒污染排放量減少90%，滿足潔凈室使用要求。

　　Nanostructured coatings usher in a new era of micro protection. The diamond-like coating prepared by magnetron sputtering technology has a grain size controlled between 10-50 nanometers, and combines high hardness and low friction characteristics. Experimental data shows that the friction coefficient of this coating can be as low as 0.05 in a dry environment, and its wear resistance is three times that of traditional chrome plating. After adopting this technology, the particle pollution emissions of a certain semiconductor equipment guide rail were reduced by 90%, meeting the requirements for clean room use.

　　自潤滑涂層實現免維護運行。通過激光熔覆技術將銅基、鎳基合金與石墨微粒復合，形成具有儲油功能的梯度結構。某風電變槳系統導軌應用后，潤滑周期從500小時延長5000小時，維護成本降低70%。該涂層需根據工況設計孔隙率，高濕度環境需控制在15%-20%區間，確保潤滑介質緩釋效果。

　　Self lubricating coating achieves maintenance free operation. By using laser cladding technology to composite copper based and nickel based alloys with graphite particles, a gradient structure with oil storage function is formed. After the application of a wind power variable pitch system guide rail, the lubrication cycle was extended from 500 hours to 5000 hours, and maintenance costs were reduced by 70%. The porosity of the coating should be designed according to the working conditions, and the high humidity environment should be controlled within the range of 15% -20% to ensure the slow-release effect of the lubricating medium.

　　涂層選型需建立三維評估模型。載荷維度需區分輕載（<5MPa）、中載（5-15MPa）、重載（>15MPa），速度維度劃分低速（<0.1m/s）、中速（0.1-1m/s）、高速（>1m/s），環境維度包含干燥、潮濕、腐蝕性介質等條件。某汽車焊接機器人導軌案例顯示，通過工況矩陣分析，終選用氮化鈦涂層，使設備MTBF提升2倍。

　　Coating selection requires the establishment of a three-dimensional evaluation model. The load dimension needs to distinguish between light load (<5MPa), medium load (5-15MPa), and heavy load (>15MPa). The speed dimension is divided into low speed (<0.1m/s), medium speed (0.1-1m/s), and high speed (>1m/s). The environmental dimension includes conditions such as dry, humid, and corrosive media. A case study of a welding robot guide rail for a certain automobile showed that through analysis of the working condition matrix, titanium nitride coating was ultimately selected, which doubled the MTBF of the equipment.

　　質量檢測需執行四維評價體系。外觀檢測采用白光干涉儀，檢測涂層表面粗糙度Ra值；結合力測試通過劃痕法測定臨界載荷；硬度測試采用維氏壓痕法，加載力控制在0.5-2N；耐磨性測試使用往復摩擦試驗機，模擬百萬次運動周期。某醫療器械導軌檢測中，通過熱震試驗發現涂層熱膨脹系數匹配問題，優化后通過500次-40℃150℃循環測試。

　　Quality inspection requires the implementation of a four-dimensional evaluation system. The appearance inspection adopts a white light interferometer to detect the surface roughness Ra value of the coating; Determine the critical load through scratch testing in combination with force testing; The hardness test adopts the Vickers indentation method, with a loading force controlled between 0.5-2N; the wear resistance test uses a reciprocating friction testing machine, simulating millions of motion cycles. During the inspection of a certain medical device guide rail, a matching problem with the thermal expansion coefficient of the coating was discovered through thermal shock testing. After optimization, 500 cycles of -40 ℃ to 150 ℃ were tested.

　　涂層修復技術實現全生命周期管理。對于局部磨損，可采用超高速激光熔覆技術進行原位修復，熱影響區控制在0.5毫米以內。某港口起重機導軌經三次修復后，累計運行里程突破10萬，維護成本僅為更換新件的30%。修復層需與原始涂層保持成分梯度過渡，避免界面應力集中。

　　Coating repair technology achieves full lifecycle management. For local wear, ultra high speed laser cladding technology can be used for in-situ repair, with the heat affected zone controlled within 0.5 millimeters. After three repairs, the accumulated operating mileage of the crane guide rail at a certain port exceeded 100000 kilometers, and the maintenance cost was only 30% of replacing new parts. The repair layer needs to maintain a gradient transition with the original coating to avoid interface stress concentration.

　　導軌抗磨損涂層技術已形成硬質防護、柔韌防護、微觀防護、自潤滑四大技術路線，通過工況適配、質量檢測、生命周期管理的系統化方案，可顯著提升設備運行可靠性。隨著材料基因組技術與智能制造的融合，涂層性能正向定制化、智能化方向演進，為高端裝備制造提供基礎支撐。

　　The wear-resistant coating technology for guide rails has formed four major technical routes: hard protection, flexible protection, micro protection, and self-lubricating. Through a systematic solution of working condition adaptation, quality inspection, and lifecycle management, it can significantly improve the reliability of equipment operation. With the integration of material genomics technology and intelligent manufacturing, coating performance is evolving towards customization and intelligence, providing basic support for high-end equipment manufacturing.
