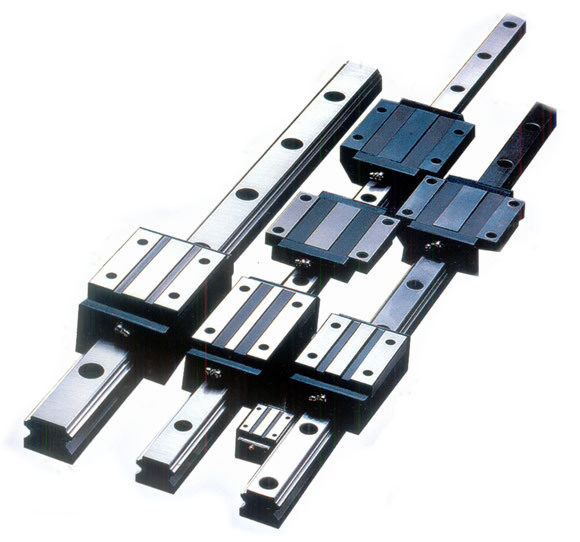

一、導軌安裝 = 鋪鐵軌：基準錯了火車會脫軌

　　1、 Rail installation=laying tracks: if the benchmark is wrong, the train will derail

　　想象裝導軌像鋪高鐵軌道 —— 基準沒定好，設備運行就像火車脫軌。某工廠機床導軌裝歪 0.1 毫米，加工零件誤差超 1 毫米，報廢率飆升 30%！定基準就像給導軌畫「生命線」，這 3 步做錯，裝了也白裝。

　　Imagine installing guide rails like laying high-speed railway tracks - if the benchmark is not set, the equipment runs like a train derails. The machine tool guide rail of a certain factory is installed incorrectly by 0.1 millimeters, and the error of processed parts exceeds 1 millimeter, resulting in a 30% surge in scrap rate! Setting a benchmark is like drawing a "lifeline" for a guide rail. If these three steps are wrong, it will be useless to install them.

　　二、步：基礎找平「鋪路基」

　　2、 Step 1: Leveling the foundation and laying the roadbed

　　1. 地面處理「搓衣板變瓷磚」

　　1. Ground treatment "washboard turned into ceramic tiles"

　　用 2 米靠尺測基礎，高低差≤0.5 毫米，某車間地面像搓衣板，導軌裝完晃得像秋千；

　　Measure the foundation with a 2-meter ruler, with a height difference of ≤ 0.5 millimeters. The floor of a certain workshop looks like a washboard, and after installing the guide rails, it shakes like a swing;

　　實操：不平處用研磨機打磨，像搓衣服磨平褶皺。

　　Practical operation: Use a grinder to polish uneven areas, like rubbing clothes to smooth out wrinkles.

　　2. 預埋件定位「打地基樁」

　　2. Positioning of embedded parts: "foundation pile"

　　按圖紙放線，孔位偏差≤1 毫米，某工地放線跑偏，導軌螺絲孔對不上，只能重新打孔；

　　According to the drawing, the deviation of the hole position is ≤ 1 millimeter. At a certain construction site, the line was off track and the screw holes on the guide rail could not be aligned, so it was necessary to re drill the holes;

　　技巧：用激光投線儀打十字線，像打臺球瞄準洞口。

　　Tip: Use a laser projector to draw a crosshair, aiming at the hole like playing billiards.

　　三、第二步：基準測量「拉鐵軌標線」

　　3、 Step 2: Benchmark measurement of "pulling rail markings"

　　1. 水平基準「端水杯不灑」

　　1. Horizontal benchmark "no spillage from cup"

　　用高精度水平儀，氣泡偏差≤0.1mm/m，某電梯導軌水平差 0.5mm/m，運行時像坐搖搖車；

　　Using a high-precision level, the bubble deviation is ≤ 0.1mm/m, and the horizontal deviation of a certain elevator guide rail is 0.5mm/m. During operation, it feels like sitting on a rocking car;

　　類比：像端滿水杯走路，水灑了就說明歪了。

　　Analogy: Like walking with a cup full of water, if water spills, it means it's crooked.

　　2. 垂直基準「掛鉛錘線」

　　2. Vertical reference "hanging lead hammer line"

　　用磁性線墜測垂直度，偏差≤0.3mm/m，某立體倉庫導軌垂直差 1mm/m，貨架升降卡殼；

　　Measure the verticality with a magnetic plumb bob, with a deviation of ≤ 0.3mm/m. The vertical deviation of the guide rail in a certain three-dimensional warehouse is 1mm/m, and the shelves are stuck in the lifting mechanism;

　　操作：線墜吊 30 分鐘，看線與導軌間隙是否均勻。

　　Operation: Hang the wire for 30 minutes and check if the gap between the wire and the guide rail is even.

　　3. 間距基準「量鐵軌寬度」

　　3. Distance benchmark "measuring rail width"

　　用游標卡尺測軌距，誤差≤0.5 毫米，某生產線導軌間距差 2 毫米，物料車卡住不動；

　　Measure the track gauge with a vernier caliper, with an error of ≤ 0.5 millimeters. The distance difference between the guide rails of a certain production line is 2 millimeters, and the material cart is stuck and unable to move;

　　案例：某汽車廠導軌間距精準，機器人走位誤差＜1 毫米。

　　Case: A certain automobile factory has precise spacing between guide rails, and the robot's positioning error is less than 1 millimeter.

　　四、第三步：固定校準「擰螺絲防晃」

　　4、 Step 3: Fix the calibration by tightening the screws to prevent shaking

　　1. 預緊校準「先松后緊」

　　1. Pre tightening calibration "loosen first, tighten later"

　　螺絲先擰 50% 力度，用千分表邊調邊緊，某設備一次擰緊，導軌變形超 0.2 毫米；

　　First tighten the screw by 50% force, then use a dial gauge to adjust and tighten it at the same time. After tightening a certain device at once, the deformation of the guide rail exceeded 0.2 millimeters;

　　口訣：三擰三測，像系鞋帶先松后緊。

　　Mnemonic: Twist three times and test three times, like tying a shoelace, loosen it first and then tighten it.

　　2. 防松處理「上保險栓」

　　2. Anti loosening treatment with "upper safety bolt"

　　螺絲涂螺紋鎖固膠，某機床螺絲震動松脫，導軌移位撞壞刀具；

　　The screw was coated with thread locking adhesive, and the screw of a certain machine tool became loose due to vibration, causing the guide rail to shift and damage the tool;

　　細節：用記號筆在螺絲頭畫直線，松了能一眼看出。

　　Detail: Use a marker pen to draw a straight line on the screw head, which can be seen at a glance if it is loose.

　　五、環境適配「看天鋪軌」

　　5、 Environmental adaptation "watching the sky and laying tracks"

　　1. 溫度補償「熱脹冷縮」

　　1. Temperature compensation for "thermal expansion and contraction"

　　溫差＞5℃時，導軌預留 0.1mm/m 膨脹縫，某北方車間沒留縫，夏季導軌拱起；

　　When the temperature difference is greater than 5 ℃, a 0.1mm/m expansion joint is reserved for the guide rail, but there is no joint left in a certain northern workshop, and the guide rail arches in summer;

　　類比：鐵軌之間留縫，防止熱脹變形。

　　Analogy: Leave gaps between railway tracks to prevent thermal expansion and deformation.

　　2. 振動隔離「墊減震墊」

　　2. Vibration isolation "pad shock absorber pad"

　　機床導軌下墊橡膠墊，某沖壓車間沒墊，振動導致基準偏移；

　　Rubber pads are placed under the machine tool guide rails, but there are no pads in a certain stamping workshop, resulting in benchmark deviation due to vibration;

　　效果：墊后振動幅度從 0.5mm 降到 0.1mm。

　　Effect: The vibration amplitude after cushioning is reduced from 0.5mm to 0.1mm.
