很多人對于滾珠絲杠異響產生了很大的疑問，今天導軌絲杠就來和大家介紹一下滾珠絲杠異響是因為什么原因。
Many people have great doubts about the abnormal noise of the ball screw. Today, the guide screw will introduce to you what causes the abnormal noise of the ball screw.
滾珠絲杠主要由絲杠、螺母、滾珠、循環器、密封圈、螺母座組成。因為又稱為：滾珠絲桿、滾珠螺桿、絲母、絲杠等!滾珠絲杠和 螺母上加工有弧形旋轉槽。當它們套裝在一起時，便形成螺旋滾道，并在滾道內裝滾珠。而滾珠則沿著絲杠滾道槽進行滾動。并經循環器作周而復始的循環運動。循環器兩端還有一個密封圈，起擋滾珠、擋粉塵的作用，以防止源粉塵進入到螺母里面，粘附在滾珠上，對滾珠的運轉帶來一定的阻力。

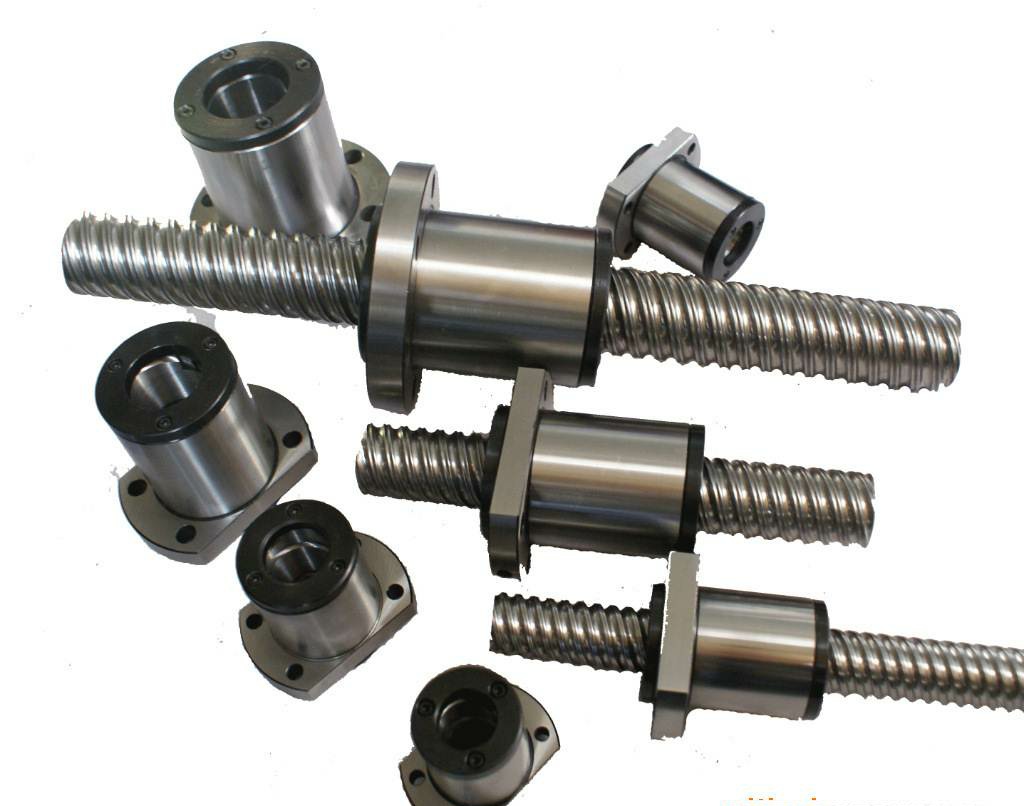

Ball screw is mainly composed of screw, nut, ball, circulator, sealing ring and nut seat. Because it is also known as: ball screw, ball screw, screw nut, screw and so on! The ball screw and nut are processed with arc-shaped rotating groove. When they are set together, a spiral raceway is formed and balls are installed in the raceway. The ball rolls along the groove of the lead screw raceway. And through the circulator for the cycle of movement. There is also a seal ring at both ends of the circulator to block the ball and dust, so as to prevent the source dust from entering the nut and adhering to the ball, which will bring some resistance to the operation of the ball.

滾珠絲杠在裝配前，如果沒有異響，而在裝配過程中發生異響 ， 原因肯定是裝配時二端沒有等高，二端不等高，往往我們肉眼是根本看不出來的，但是裝機運行時，就會有異響，并且有卡頓的感覺。建議我們在裝配的時候，不要一次性把一端擰緊后，再去擰另一端，先一端銷擰一下，再擰另一端，這樣反復，慢慢的多次擰緊。有異響的時候，請一定要 時間檢測二端支撐座部分是否是等高的，或是有沒有安裝平整。
If there is no abnormal noise before the ball screw is assembled, but the abnormal noise occurs during the assembly process. The reason must be that the two ends are not equal in height and the two ends are unequal in height. We can't see them by naked eyes. However, when the ball screw is installed and running, there will be abnormal noise and a sense of jamming. It is suggested that we do not tighten one end at a time, and then screw the other end. First, screw one end pin, and then the other end, so that we can repeatedly and slowly tighten it many times. When there is abnormal noise, please be sure to check whether the two end support seat is of equal height or installed smoothly.
導軌絲杠
Guide screw
如果在裝機前就感覺絲桿螺母滑動有異響，那就是預壓調的太松了，簡單來說，就是螺母剛珠與絲桿滾道槽間隙太大，導致來回運行時，發出“嘩嘩”的聲音，但是這種聲音是平穩的，不是尖銳刺耳的。如果是刺耳的話，可能是螺母進入其它異物，卡住剛珠導致。還有一種可能性是，絲桿微變形，導致直線度不好，也會在變形的地方產生異響。
If there is abnormal noise during the screw nut sliding before the installation, it is that the preloading adjustment is too loose. In short, the gap between the nut ball and the screw roller groove is too large, resulting in the sound of "Hua Hua Hua" when running back and forth, but the sound is stable, not sharp and harsh. If it is harsh, it may be caused by the nut entering into other foreign matters and jamming the rigid bead. Another possibility is that the screw rod is slightly deformed, resulting in poor straightness, and abnormal noise will be generated at the deformed place.
以上就是導軌絲杠對于滾珠絲杠為什么會異響的介紹，如果您有什么不同的意見或者建議可以聯系我們，也可以在我們網站給我們留言http://www.306135.com
If you have any different opinions or suggestions, you can contact us or leave us a message on our website http://www.306135.com
